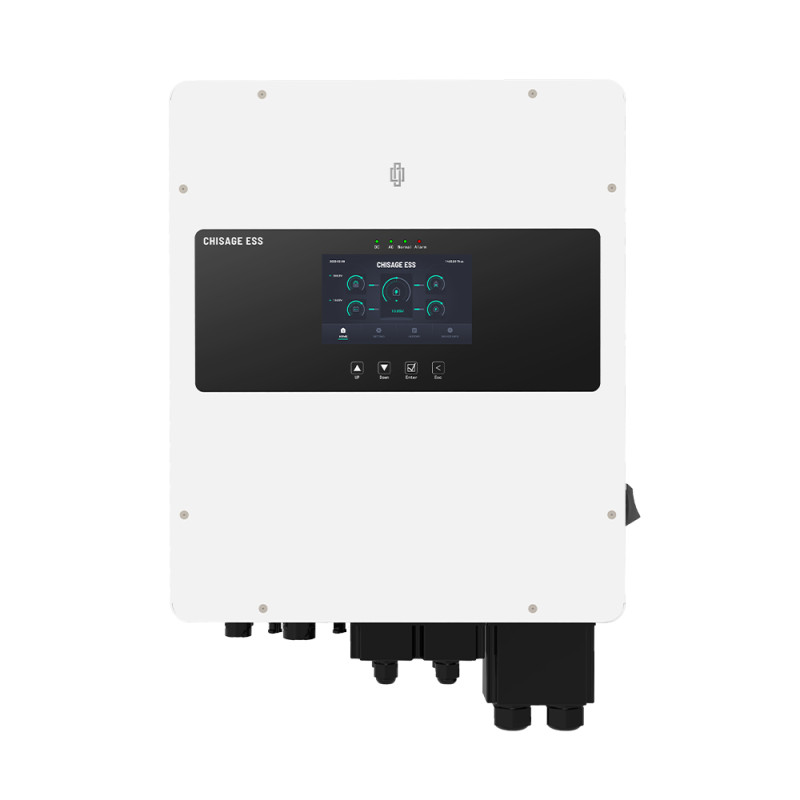

CHISAGE MARS 8kW 3 phase on and off hybrid inverter with wifi, Mars-8G2-LE

Review (0)

€3,061.72

Tax Included

Delivery: from the Central warehouse within 1-2 weeks

Kurjerpiegādes Privātpersonām

from €5.10

Piegāde uz paku skapi

from €3.90

Delivery: from the Central warehouse within 1-2 weeks

In stock > 20

CHISAGE MARS 8kW 3 phase on and off hybrid inverter with wifi, Mars-8G2-LE - advantages

- 8kW Rated AC Output Power;
- ARC fault detection optional;
- support on/off grid mode switch, EPS output;
- support storing energy from diesel generator;
- independent AC input port for diesel generator;
- 20 PCS inverters parallel for off-grid operation;
- colorful 7-inch touch LCD, IP65 protection degree;
- support different power inverters parallel connection;
- support battery charging/discharging according to the time setting;
- 100% unbalanced output, each phase max. output up to 5kW;
- 10 years warranty.

CHISAGE MARS 8kW 3phase on and off hybrid inverter wifi, Mars-8G2-LE

CHISAGE MARS 8kW 3 phase on and off hybrid inverter with wifi, Mars-8G2-LE

CHISAGE MARS 8kW 3 phase on and off hybrid inverter with wifi, Mars-8G2-LE

CHISAGE MARS 8kW 3 phase on and off hybrid inverter with wifi, Mars-8G2-LE

CHISAGE MARS 8kW 3 phase on and off hybrid inverter with wifi, Mars-8G2-LE

CHISAGE MARS 8kW 3 phase on and off hybrid inverter with wifi, Mars-8G2-LE

CHISAGE MARS 8kW 3 phase on and off hybrid inverter with wifi, Mars-8G2-LE

CHISAGE MARS 8kW 3 phase on and off hybrid inverter with wifi, Mars-8G2-LE

CHISAGE MARS 8kW 3 phase on and off hybrid inverter with wifi, Mars-8G2-LE

CHISAGE MARS 8kW 3 phase on and off hybrid inverter with wifi, Mars-8G2-LE - Technical data

Model	Mars-5G2-LE	Mars-6G2-LE	Mars-8G2-LE	Mars-10G2-LE	Mars-12G2-LE	Mars-14G2-LE
Battery Input
Battery Type	Lead-acid or Li-ion
Battery Voltage Range (V)	40-60
Max. Charge Current (A)	120	130	200	220	250	280
Max. Discharge Current (A)	120	130	200	220	250	280
Charging Curve	3 Stages/Equalization
External Temperature Sensor	Optional
Charging Strategy for Li-Ion Battery	Self-Adaption to BMS
PV String Input
Max. DC Input Power (W)	7,500	9,000	12,000	15,000	18,000	20,000
PV Input Voltage (V)	650(160~800)
MPPT Range (V)	200~700
Full Load DC Voltage Range (V)	260~650
Start-up Voltage (V)	160
PV Input Current (A)	17+17	17+17	17+17	26+17	26+17	26+17
Max. PV Isc (A)	20+20	20+20	20+20	34+20	34+20	34+20
No. of MPPT Trackers	2
No. of Strings per MPPT Trackers	1+1	1+1	1+1	2+1	2+1	2+1
AC Output
Rated AC Output and UPS Power (W)	5,000	6,000	8,000	10,000	12,000	14,000
Max. AC Output Power (W)	6,000	7,200	9,600	12,000	13,200	15,400
Peak Power(off grid)	2 times of rated power, 10s				1.8 times of rated power, 10s
AC Output Rated Current (A)	7.6/7.3	9.1/8.7	12.1/11.6	15.2/14.5	18.2/17.4	21.1/20.3
Max. AC Current (A)	11.4/10.9	13.6/13	18.2/17.4	22.7/21.7	27.3/26.1	27.6/26.4
Max. Continuous AC Passthrough (A)	30	30	30	50	50	50
Power Factor	0.8 leading to 0.8 lagging
Output Frequency and Voltage (V)	50/60Hz, 380/400Vac(Triple phase)
Grid Type	Three phase
Current Harmonic Distortion	THD<3%(Linear load<1.5%)
Efﬁciency
Max. Efﬁciency	97.90%
Euro Efﬁciency	97.00%
MPPT Efﬁciency	99.90%
Protection
Integrated	PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, InsulationResistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection
PV ARC Fault Detection	Optional
Output Over Voltage Protection	DC Type II/AC Type III
Certiﬁcations and Standards
Grid Regulation	CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699,C10-11
Safety Regulation	IEC/EN62109-1, IEC/EN62109-2
EMC	IEC/EN 61000-6-1,IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61000-6-4
General Data
Operating Temperature Range (℃)	-45~60, >45 Derating
Cooling	Smart Cooling
Noise (dB)	≤45
Communication with BMS	CAN, RS485
Weight (kg)	38	40	42	44	44	45
Dimensions (mm)	510W ×630H ×290D
Protection Degree	IP65
Installation Style	Wall-mounted

Chisage

Reference Mars-8G2-LE

In stock419 Items

Data sheet

Product line: Mars
Nominal Output Power: 9600VA
DC Voltage (V): 48
Bluetooth: No
Protection Class: IP65
Built-in MPP(T)/Strings: 2/4
Equipment type: Hybrid Inverter
Phase count: 3

Specific References

MPN: Mars-8G2-LE

Download

Datasheet CHISAGE MARS 5-14kW

CHISAGE MARS 5-14kW 3 phase on and off hybrid inverter with wifi plug - DataSheet

Download (76.38KB)

CHISAGE MARS 5-14kW MANUAL

CHISAGE MARS 5-14kW 3 phase on and off hybrid inverters with wifi plug, Mars-5-14G2-LE - User manual

Download (6.51MB)

CHISAGE MARS 5-14kW INSTALL

CHISAGE MARS 5-14kW 3 phase on and off hybrid inverter with wifi plug, Mars-5-14G2-LE - Instalation Guide

Download (524.19KB)
