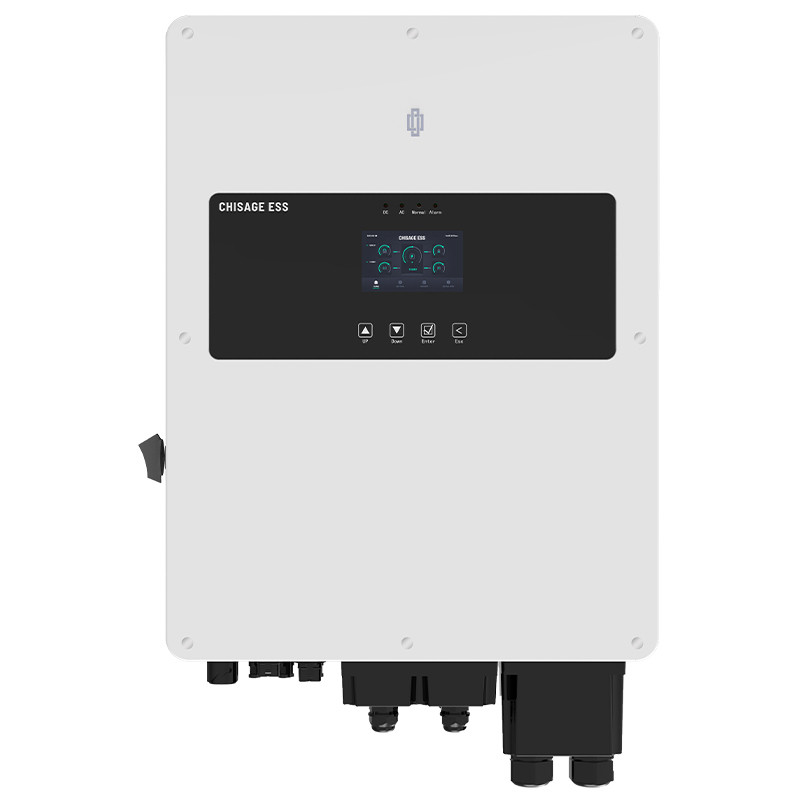

CHISAGE Jup-3kW single phase on and off hybrid inverter with wifi plug, low voltage 48V, Jup-3G2-LE

Review (0)
€1,336.82
Tax Included
Delivery: from the Central warehouse within 1-2 weeks

Kurjerpiegādes Privātpersonām

from €5.10

Piegāde uz paku skapi

from €3.90

Out of Stock

CHISAGE Jup-3kW single phase hybrid inverter Jup-3G2-LE:

  • 3kW Rated AC Output Power;
  • ARC fault detection optional;
  • Support storing energy from diesel generator;
  • Support on/off grid mode switch, EPS output;
  • 20 PCS inverters parallel for off-grid operation;
  • Independent AC input port for diesel generator;
  • Colorful 5-inch touch LCD, IP65 protection degree;
  • Support different power inverters parallel connection;
  • Support battery charging/discharging according to the time setting;
  • 10 Years Warranty.
      CHISAGE Jup-3kW single phase on and off hybrid inverter, Jup-3G2-LE
      CHISAGE Jup-3kW single phase on and off hybrid inverter with wifi plug, low voltage 48V, Jup-3G2-LE
      CHISAGE Jup-3kW single phase on and off hybrid inverter with wifi plug, low voltage 48V, Jup-3G2-LE
      CHISAGE Jup-3kW single phase on and off hybrid inverter with wifi plug, low voltage 48V, Jup-3G2-LE
      CHISAGE Jup-3kW single phase on and off hybrid inverter with wifi plug, low voltage 48V, Jup-3G2-LE
      CHISAGE Jup-3kW single phase on and off hybrid inverter with wifi plug, low voltage 48V, Jup-3G2-LE
      CHISAGE Jup-3kW single phase on and off hybrid inverter with wifi plug, low voltage 48V, Jup-3G2-LE
      CHISAGE Jup-3kW single phase on and off hybrid inverter with wifi plug, low voltage 48V, Jup-3G2-LE
      keyboard_arrow_rightkeyboard_arrow_left
      Quantity :
      Add to wishlist
      Write your review

      CHISAGE Jup-3kW single phase on/off-grid hybrid inverter Jup-3G2-LE support Less than 5ms on/off Grid Mode Switch

      Chisage ESS single phase Jup-3kW hybrid inverter is designed to support fast switching between on-grid and off-grid mode in less than 5 milliseconds, ensuring a seamless transition between on-grid and off-grid operation.

      CHISAGE Jup-3kW single phase on/off-grid hybrid inverter Jup-3G2-LE has independent AC Input Port for Diesel Generator

      Chisage ESS single phase Jup-3kW hybrid inverter have an independent AC input port specifically designed for connection to a diesel generator. This allows seamless integration of backup power from the generator when needed.

      CHISAGE JUPITER 3kW-10kW hybrid inverters - technical specifications

      Model Jup-3G1-LE
      Jup-3G2-LE      		 Jup-5G1-LE
      Jup-5G2-LE      		 Jup-6G1-LE
      Jup-6G2-LE      		 Jup-8G1-LE
      Jup-8G2-LE      		 Jup-10G1-LE
      Jup-10G2-LE
      Battery Input Data
      Battery Type Lead-acid or Li-ion
      Battery Voltage Range (V) 40-60
      Max. Charge Current (A) 70 140 190 190 210
      Max. Discharge Current (A) 70 140 190 190 210
      Charging Curve 3 Stages/Equalization
      External Temperature Sensor Optional
      Charging Strategy for Li-Ion Battery Self-Adaption to BMS
      PV String Input Data
      Max. DC Input Power (W) 4500 7500 9000 12000 15000
      PV Input Voltage (V) 370(125~500)
      MPPT Range (V) 150~425
      Start-up Voltage (V) 120
      PV Input Current (A) 17 17+17 17+17 26+26 26+26
      Max. PV ISC (A) 20 20+20 20+20 34+34 34+34
      No. of MPPT Trackers 1 2 2 2 2
      No. of String Per MPPT Tracker 1 1+1 1+1 2+2 2+2
      AC Output Data
      Rated AC Output Power and UPS Power (W) 3000 5000 6000 8000 10000
      Max. AC Output Power (W) 3600 6000 7200 9600 12000
      Peak Power(off grid) 2 times of rated power, 10s 1.8 times of rated power, 10s
      AC Output Rated Current (A) 13.65/13.05 22.7/21.7 27.3/26.1 34.5/33 45.5/43.5
      Max. AC Current (A) 25/14.35 25/23.9 30/28.7 40/38.3 50.0/47.8
      Max. Continuous AC Passthrough (A) 40 40 40 50 60
      Power Factor 0.8 leading to 0.8 lagging
      Output Frequency and Voltage 50/60Hz,220/230Vac(single phase)
      Grid Type single phase
      Current Harmonic Distortion THD<3%(Linear load <1.5%)
      Efficiency
      Max. Efficiency 97.90%
      Euro Efficiency 97.00%
      MPPT Efficiency 99.90%
      Protection
      Integrated PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection,Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection,Output Shorted Protection
      PV ARC Fault Detection Optional
      Output Over Voltage Protection DC Type II/AC Type III
      Certification and Standards
      Grid Regulation CEI 0-21,VDE-AR-N 4105,NRS 097,IEC61727,G99,G98,VDE 0126-1-1,RD 1699,C10-11
      EMC/Safety Regulation IEC/EN 62109-1 IEC/EN 62109-2,IEC/EN 61000-6-1,IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61000-6-4
      General Data
      Operating Temperature Range(℃) -45~60,＞45 Derating
      Cooling Smart cooling
      Noise(dB) ≤45
      Communication with BMS CAN, RS485
      Weight (kg) 34
      Dimensions (mm) 514W ×749H ×291D
      Protection Degree IP65
      Installation Style Wall-mounted

      Chisage
      Jup-3G2-LE

      Data sheet

      Product line
      Jupiter
      Nominal Output Power
      3600VA
      DC Voltage (V)
      48
      Bluetooth
      No
      Protection Class
      IP65
      Built-in MPP(T)/Strings
      1/1
      Equipment type
      Hybrid Inverter
      Phase count
      1

      Specific References

      MPN
      Jup-3G2-LE

      Download

      Chisage Jupiter 3-10kW - DS

      Chisage Jupiter 3-10kW on/off-grid hybrid inverter - DataSheet

      Download (100.5KB)

      Chisage Jupiter 5-10kW - MN

      Chisage Jupiter 5-10kW on/off-grid hybrid inverters - User Manual

      Download (6.54MB)
