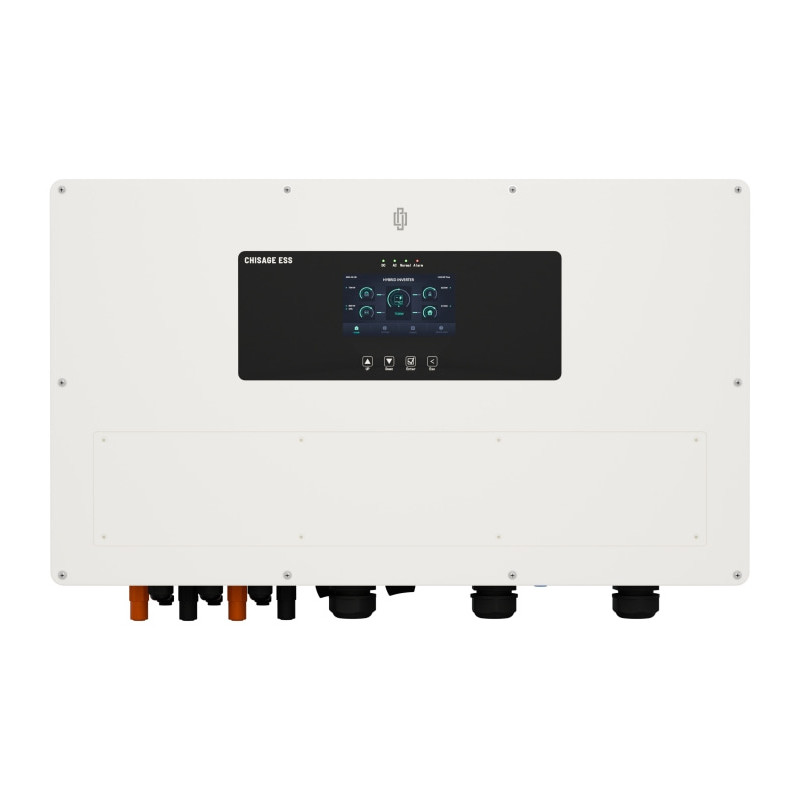

CHISAGE MERC 20kW high voltage 3 Phase on and off hybrid inverter, Merc-20G1-HE

Review (0)
€4,903.62
Tax Included
Delivery: from the Central warehouse within 1-2 weeks

Kurjerpiegādes Privātpersonām

from €5.10

Piegāde uz paku skapi

from €3.90

Out of Stock

CHISAGE Merc 20kW 3 Phase hybrid inverter Merc-20G1-HE:

  • - 20kW Rated AC Output Power;
  • - up to 20 PCS inverters parallel;
  • - single High PV input current up to 18A;
  • - colorful touch LCD, IP65 protection degree;
  • - independent AC input port for diesel generator;
  • - support storing energy from diesel generator;
  • - support on/off-grid mode switch, EPS output;
  • - high battery charging/discharging current up to 120A;
  • - support battery charging/discharging according to the time setting;
  • - 5 Years Warranty.
      CHISAGE MERC 20kW high voltage 3 Phase on and off hybrid inverter
      CHISAGE MERC 20kW high voltage 3 Phase on and off hybrid inverter, Merc-20G1-HE
      CHISAGE MERC 20kW high voltage 3 Phase on and off hybrid inverter, Merc-20G1-HE
      CHISAGE MERC 20kW high voltage 3 Phase on and off hybrid inverter, Merc-20G1-HE
      CHISAGE MERC 20kW high voltage 3 Phase on and off hybrid inverter, Merc-20G1-HE
      keyboard_arrow_rightkeyboard_arrow_left
      Quantity :
      Add to wishlist
      Write your review

      CHISAGE Merc 20kW 3 Phase hybrid inverter Merc-20G1-HE - Tehnical data:

      Model Merc-20G1-HE Merc-25G1-HE Merc-29.9G1-HE Merc-30G1-HE Merc-35G1-HE Merc-40G1-HE Merc-50G1-HE Merc-60G1-HE
      Battery Input
      Battery Type Lead-acid or Li-ion
      Battery Voltage Range (V) 160~800
      Max. Charging/Discharging Current (A) 50 60+60
      Max. Charging/Discharging Power (kW) 22 27.5 29.9 33 38.5 44 55 62.5
      Charging Curve 3 Stages/Equalization
      Number of Battery input 1 2
      Charging Strategy for Li-Ion Battery Self-Adaption to BMS
      PV String Input
      Max. DC Input Power (kW) 30 37.5 44.85 45 52.5 60 70 78
      PV Input Voltage (V) 800(160~1000)
      MPPT Range (V) 200~850
      Start-up Voltage (V) 160
      PV Input Current (A) 36+36 36+36+36 36+36+36+36 36+36+36+36+36
      Max. PV Isc (A) 55+55 55+55+55 55+55+55+55 55+55+55+55+55
      No. of MPPT Trackers 2 3 4 5
      No. of Strings per MPPT Trackers 2+2 2+2+2 2+2+2+2 2+2+2+2+2
      AC Output
      Rated AC Output and UPS Power (kW) 20 25 29.9 30 35 40 50 60
      Max. AC Output Power (kW) 22 27.5 29.9 33 38.5 44 55 66
      Peak Power(off grid)(kW) 1.5 times of rated power, 10s
      AC Output Rated Current (A) 30.3/29.0 37.9/36.2 45.4/43.4 45.5/43.5 53.1/50.8 60.7/50.8 75.8/72.5 90.9/87.0
      Max. AC Current (A) 33.3/31.9 41.7/39.8 45.4/43.4 50/47.9 58.4/55.8 66.7/63.6 83.4/79.8 100/95.8
      Max. Continuous AC Passthrough (A) 100 200
      Output Frequency and Voltage (V) 50/60Hz, 230/400Vac, 220/380
      Grid Type Three phase
      Current Harmonic Distortion THD<3%
      Efficiency
      Max. Efficiency 97.60%
      Euro Efficiency 97.00%
      MPPT Efficiency >99%
      Protection
      Integrated PV Input Lightning Protection, Anti-Islanding Protection,PV String Input Reverse Polarity Protection, InsulationResistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection
      PV ARC Fault Detection Optional
      Output Over Voltage Protection DC Type II/AC Type III
      Certifications and Standards
      Grid Regulation CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699,C10-11
      Safety Regulation IEC/EN62109-1, IEC/EN62109-2
      EMC IEC/EN 61000-6-1,IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61000-6-4
      General Data
      Operating Temperature Range (℃) -45~60, >45 Derating
      Cooling Smart Cooling
      Noise (dB) ≤65
      Communication with BMS CAN, RS485
      Weight (kg) 85
      Dimensions (mm) 890W×550H×300D
      Protection Degree IP65
      Installation Style Wall-mounted
      Chisage
      Merc-20G1-HE

      Data sheet

      Product line
      Mercury
      Nominal Output Power
      22000VA
      DC Voltage (V)
      160~800
      Bluetooth
      No
      Protection Class
      IP65
      Built-in MPP(T)/Strings
      2/4
      Equipment type
      Hybrid Inverter
      Phase count
      3

      Specific References

      MPN
      Merc-20G1-HE

      Download

      CH-MERC-20-60kw-3p-hv-hybrid-DS

      Chisage 20-60kW 3 phase on/off-grid High voltage Hybrid inverters - DataSheet

      Download (69.17KB)
